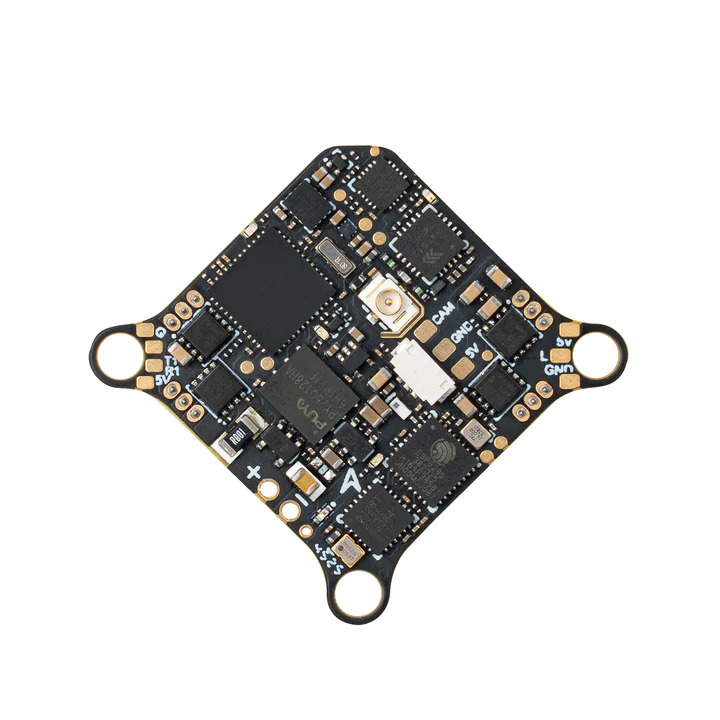

Beta FPV Matrix 1S Flight Controller (5IN1 II)
SKU:
FLR-0001
Flight Controller
Beta FPV
Whoop
FC
MCU: STM32G473CEU6
Gyro: ICM42688P / ICM42622 / LSM6DSV16X / LSM6DSK320X
Blackbox memory: 16MB
Sensor: Voltage & Current
BEC: 5V, Max 3A
UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
BetaFlight OSD: AT7456E
ESC: 12A continuous
RX:Serial ELRS 2.4GHz (V3.4.3)
VTX: 5.8GHz 48 channels, Max 400mW
FC firmware: Betaflight_4.5.3_BETAFPVG473_V2
USB port: SH1.0-4Pin
Motor connector: JST1.25
Battery connector: BT2.0
Mounting hole size: 26mm x 26mm

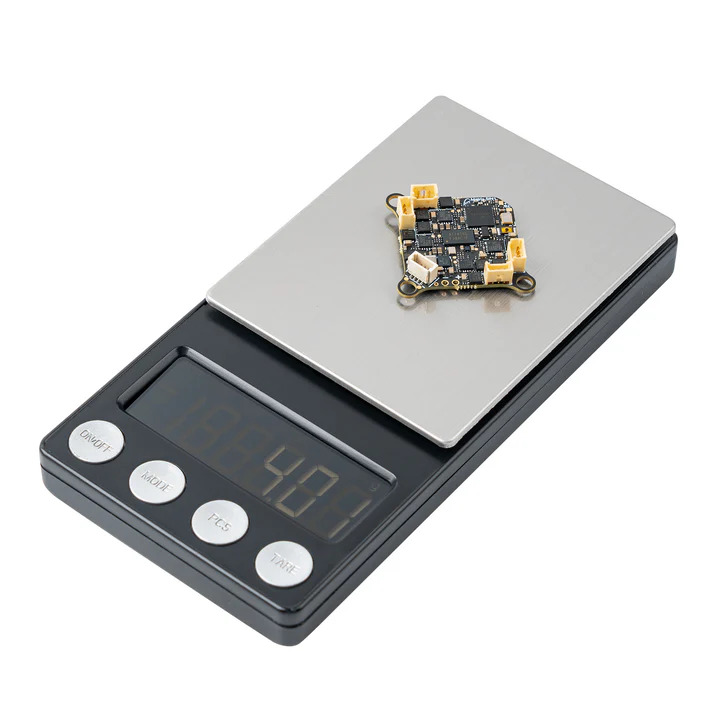

Weight: 4.1ยฑ0.1g (solder-free), 3.76g (soldered-required)
ESC
Power input: 1S Only
Current: 12A continuous, 18A peak
ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
Digital signal protocol: DShot300, DShot600
VTX
Output power: 25/100/200/400/PIT
Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
Channel SEL: SmartAudio2.0
Modulation type: FM
Frequency control: PLL
All harmonic: Max -50dBm
Frequency stability: ยฑ100KHz (Typ.)
Frequency precision: ยฑ200KHz (Typ.)
Channel carrier error: ยฑ1.5dB
Antenna port: 50 ฮฉ
Operating temperature: -10โ~80โ
