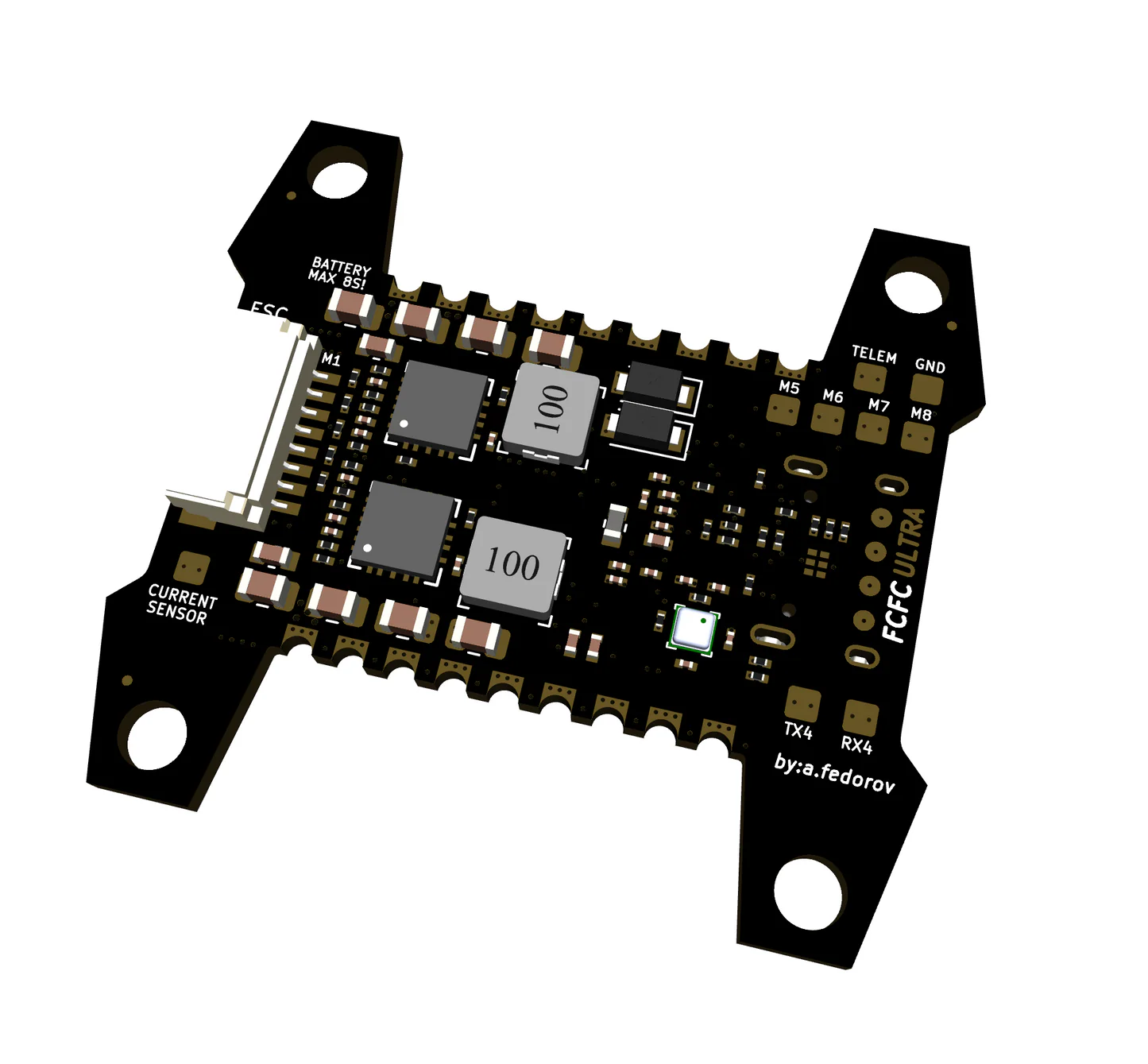

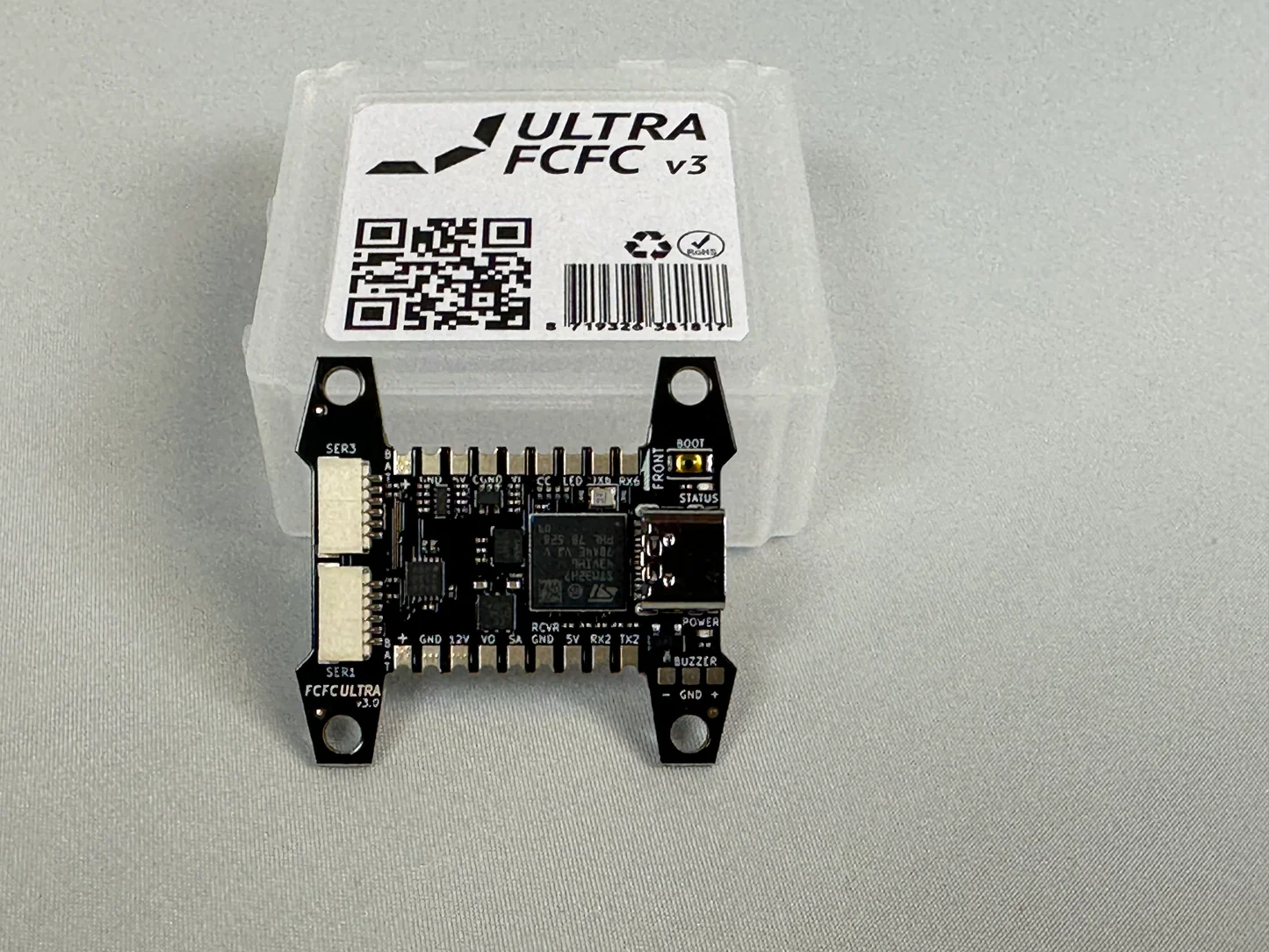

KISS ULTRA v3

- STM32H743 processor 480 MHz, 2MB FLASH, 1.28MB RAM - IIM-42652 gyro, SPI - BMP390 barometer - 8 pin ESC connector, backward compatible with KISS (!!!not with FETTEC!!!). Includes current sensor pin. - Extra solder pads for motors 5-8 - 2 serial ports on 6 pin connectors (SER1 / SER3), KISS compatible - Overcurrent protection on all data lines - ESD protection on USB - 5v/12v becs (2A) with separate power on lipo and on usb. 8s capable. (first batch has 12.8v regulator). - Dedicated current sensor pad - Finally USB-C :) - Better cable harness Software improvements: - Firmware is based on LATEST version from PATREON - New STM32 H7 bootloader, VCP driver - One HEX to rule them all… ?? - Smart config storage… NEVER loose your configuration… - Optimized hardware interface layer code - Optimized adaptive filter code (CPU load is about 8% fully loaded!!!) - Added BLHELI Passthrough - IRC Ghost support - TBS CSRFv3 support (ultra code) - Improved RTH with BARO support - KISS Weather Station (its fun) - NO soft serial ports anymore! - 7 serial ports exposed (dedicated serials for SA and RC telemetry) - Camera control (analogue, real DAC) - UBX protocol GPS support - Battery capacity/alerts - DSHOT router (free routing between software and hardware channels) - Up to 8 motors support with DSHOT2400/1wire - Full support of all HD systems (DJI MSP, DJI WTF, DJI O3, Walksnail, HD0) OSD features: - Integrated Graphical OSD - No OSD firmware update required - Configurable Black and White levels, transparency - FULL KISS configuration from OSD - ESC configuration - No serial port required, 50fps refresh rate - Battery cell voltage sensor - Crossfire tools - AM32 setup tools - Hardware test tools (rc test, gps test, video test, motor test etc) GUI improvements: - Forked GUI code (With permission of Flyduino) - Design facelift, code cleanup. - Removed odd things like pentacopters, cars and other noise. - Web GUI without installation available at https://kiss-ultra.com/ - OSD Mirror https://youtu.be/aUqtCTAt8ik - Native support of Apple Silicon Abbreviations: KISS - Keep It Super Simple FCFC - Fedor Commander Flight Controller In the box: Kiss FCFC Ultra v3 8-8 cable 8-6 cable (legacy)
